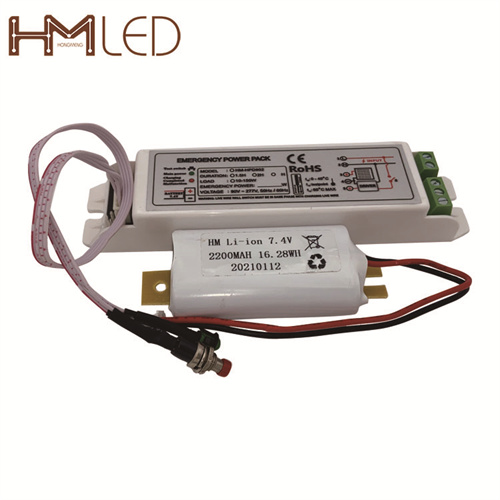

3-15W应急电源 LED灯全功率应急驱动

技术参数

Technical data

输入电压AC90-277V 50-60Hz

- Input rated voltage:AC 90-277V  50-60Hz

额定充电功率15W

- AC Input power rated 15W max

功率因素：>0.5

- Power factor: >0.5

充电时间：≥24小时

- Charge time ≥24 hours

充电模式：持续性恒流

- Charge mode: trickle re-charging on battery

全应急功率5-15W,输出电压＜DC300V,可负载5-15W

- Full emergency power 5-15W, output voltage＜DC300V, loadable 5-15W

锂电池容量：2000mAh, 2200mAh, 2600mAh,4000mAh,5000mAh,6600mAh

Battery capacity (LIR) 2000mAh, 2200mAh, 2600mAh,4000mAh,5000mAh,6600mAh

充电电流：200mA

- Battery Charging Current: 200mA

1-3小时应急时间，或定制应急时间

- 1-3 hours emergency time, or customized emergency time

应急器外壳耐温70度

- Max. casing temperature tc 70℃

流明：120LM/W

- Lumen Factor: 120lm/Wattage

应急器和电池均有绝缘加强

-Reinforced insulation between the supply and the battery circuit.

重新连接电池后，应急器可以正常为电池充电

-This unit can recharge the battery normally after reconnecting of battery.
